Equa-press Lower Holders

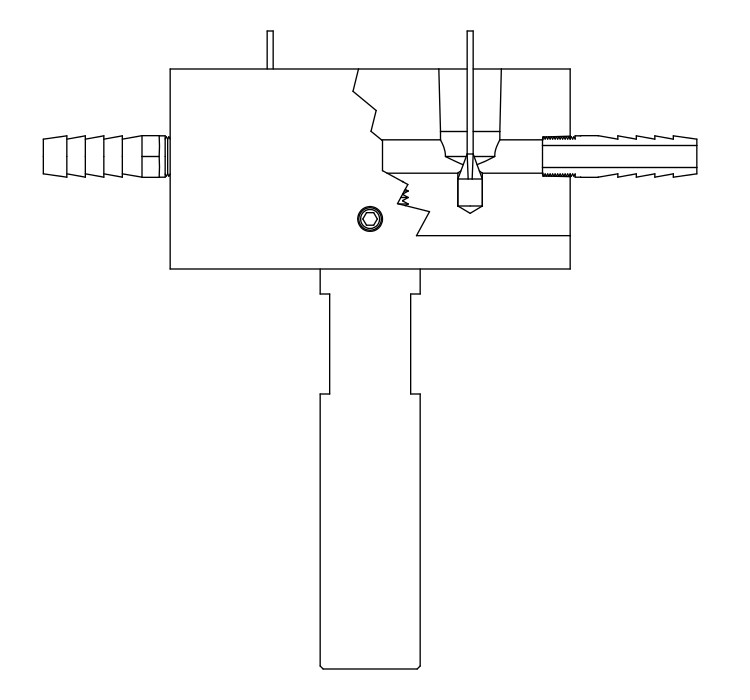

Tuffaloy Equapress Lower Holder Header

A lower, fixed, dual tip holder is offered for use with Equa-Press Holders. Like the Equa-Press, it has a standard two-inch tip spacing and helps make two welds at once, precisely alike. The standard trans-verse bar electrode shown is used when work geometry doesn't require tips on the lower side. They are water-cooled.

PartDescription RWMA Material Type Engagement to Holder Electrode Engagement Overall Length Body Length Body Width Body Thickness Shank Length Electrode Spacing Unit of Measure
350-4020
4020 LOWER ELECTRODE 1" RWMA Class 2 1 IN diameter shank 5.50000 1.5000 5.00000 1.50000 4.000 IN
350-4021
4021 LOWER ELECT. 1-1/4" RWMA Class 2 1.25 IN diameter shank 5.50000 1.5000 5.00000 1.50000 4.000 IN
350-4022
4022 LOWER ELECT 1-1/2" RWMA Class 2 1.5 IN diameter shank 5.50000 1.5000 5.00000 1.50000 4.000 IN
350-4030
4030 LOWER HOLDER 1" RWMA Class 2 1 IN diameter shank 5RW 6.00000 2.0000 4.00000 1.00000 4.000 2.000 IN
350-4031
4031 LOWER HOLDER 1-1/4" RWMA Class 2 1.25 IN diameter shank 5RW 6.00000 2.0000 4.00000 1.00000 4.000 2.000 IN
350-4032
4032 LOWER HOLDER 1-1/2" RWMA Class 2 1.5 IN diameter shank 5RW 6.00000 2.0000 4.00000 1.00000 4.000 2.000 IN
