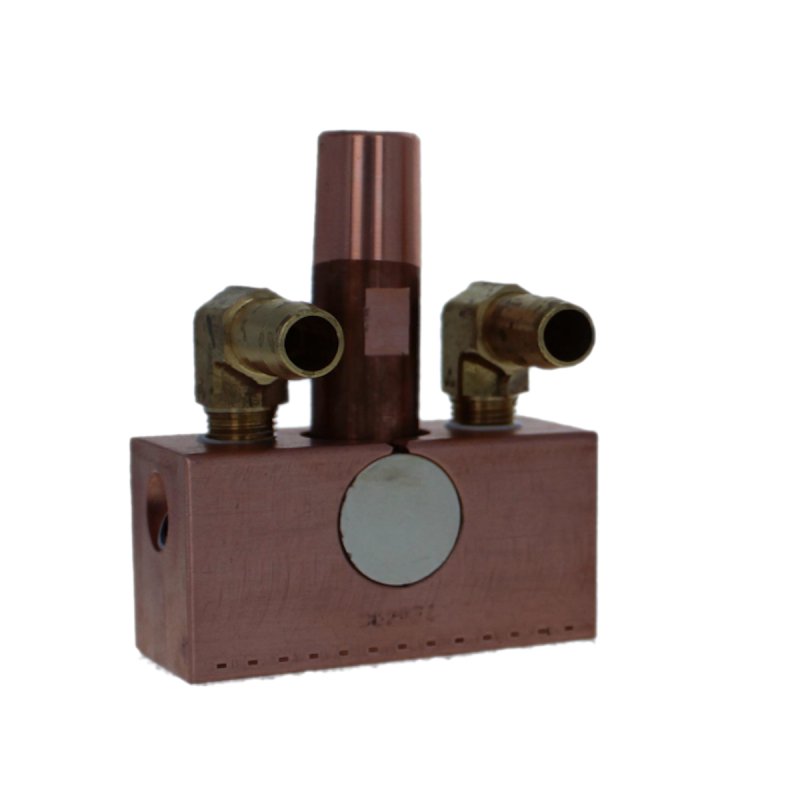

TT-1508-1.5"-5RW SOCKETS

TT-1508-1.5"-5RW SOCKETS

Part #: 191-0824

Request 3D Model

Request 3D Model


Teeter Tip Adapters make two welds per machine stroke, increasing efficiency. Water cooling is delivered to each tip to increase electrode life. The pivot function ensures equal current and pressure is delivered to each tip. It compensates for uneven electrode wear and work variations up to 0.06 IN.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overal length of the part is 2.625 IN.
  • The body width is 2.5 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The part holds 2 tips via 5RW standard tapers which are suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The electrodes are spaced 1.5 IN

Specifications

RWMA Material Type RWMA Class 2
Engagement to Holder 5RW
Electrode Engagement 5RW
Overall Length 2.62500
Body Length 1.2500
Body Width 2.50000
Body Thickness 1.00000
Electrode Spacing 1.500
Unit of Measure IN
