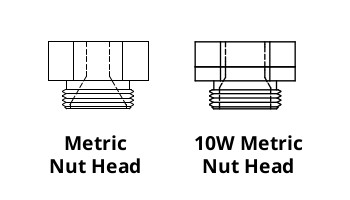

Metric Nut Heads
Metric nut Heads are made from RWMA class 2 material that are an optimal cost consumable. Class 3 and 10W are available for longer life. With a concave seat the pin locates in the center of assembly when air is applied to the system. This gives you a repeatable location for automated nut feeders to introduce the nut to the environment.
The part is designed for use with Metric Nut Bodies.
| Part | Description | Face Refractory Material | RWMA Material Type | Thread | Overall Length | Diameter | Hole Diameter | Refractory Material Thickness | Unit of Measure | Chamfer Angle at Base |
|---|---|---|---|---|---|---|---|---|---|---|
| 175-8015 | M15 15MM CAP | RWMA Class 2 - C18200 | M26 | 0.67000 | 1.25 | 0.62800 | IN | 60.0 | ||
| 175-8015-10W | M15-10W 15MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M26 | 0.67000 | 1.25 | 0.62800 | 0.250 | IN | 60.0 |
| 175-8010 | M10 10MM CAP | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.43200 | IN | 60.0 | ||
| 175-8014-10W | M14-10W 14MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M26 | 0.67000 | 1.25 | 0.58800 | 0.250 | IN | 60.0 |
| 175-8014 | M14 14MM CAP | RWMA Class 2 - C18200 | M26 | 0.67000 | 1.25 | 0.58800 | IN | 60.0 | ||
| 175-8013-10W | M13-10W 13MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.55100 | 0.250 | IN | 60.0 |
| 175-8013 | M13 13MM CAP | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.55100 | IN | 60.0 | ||
| 175-8012-10W | M12-10W 12MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.51200 | 0.250 | IN | 60.0 |
| 175-8012 | M12 12MM CAP | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.51200 | IN | 60.0 | ||
| 175-8011-10W | M11-10W 11MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.47200 | 0.250 | IN | 60.0 |
| 175-8011 | M11 11MM CAP | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.47200 | IN | 60.0 | ||
| 175-8010-10W | M10-10W 10MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M22 | 0.67000 | 1.125 | 0.43200 | 0.250 | IN | 60.0 |
| 175-8004 | M4 4MM CAP | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.19700 | IN | 60.0 | ||
| 175-8009-10W | M9-10W 9MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.39400 | 0.250 | IN | 60.0 |
| 175-8009 | M9 9MM CAP | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.39400 | IN | 60.0 | ||
| 175-8008-10W | M8-10W 8MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.35400 | 0.250 | IN | 60.0 |
| 175-8008 | M8 8MM CAP | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.35400 | IN | 60.0 | ||
| 175-8007-10W | M7-10W 7MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.34500 | 0.250 | IN | 60.0 |
| 175-8007 | M7 7MM CAP | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.31500 | IN | 60.0 | ||
| 175-8006-10W | M6-10W 6MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.27600 | 0.250 | IN | 60.0 |
| 175-8006 | M6 6MM CAP | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.27600 | IN | 60.0 | ||
| 175-8005-10W | M5-10W 5MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.23600 | 0.250 | IN | 60.0 |
| 175-8005 | M5 5MM CAP | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.23600 | IN | 60.0 | ||
| 175-8004-10W | M4-10W 4MM CAP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | M18 | 0.67000 | 1 | 0.19700 | 0.250 | IN | 60.0 |
