612-2 (12mm) SELF-PILOTED-NUT ELECT.

612-2 (12mm) SELF-PILOTED-NUT ELECT.

Part #: 175-6122

Request 3D Model

Request 3D Model

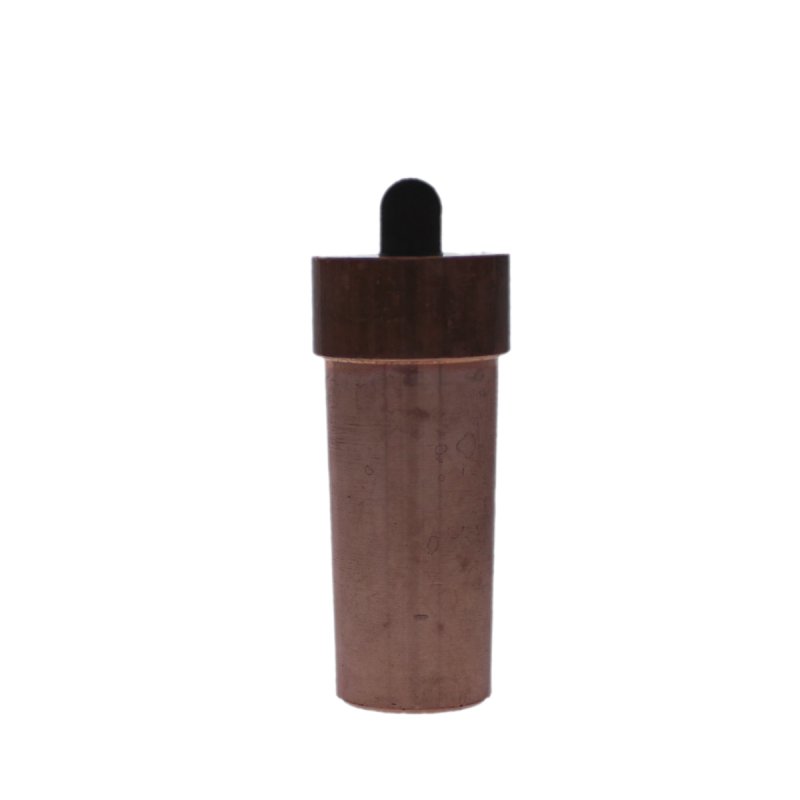

Heavy Duty Self-Piloted Nut Electrods are designed for projection welding nuts. The part has an insulated, fixed pilot which centers the nut in position. Use with an upper electrode with a hole to receive the pilot. The large diameter taper to mounts Tuffaloy Heavy Duty Stud-Nut Holders.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 2.750 IN
  • The part mounts to HD Size 2 Electrode Holder via taper fit
  • The weld face is 1.5 IN
  • The part has a fixed insulated pilot for welding a 12 mm nut
  • The pilot stickout length from the face of the elctrode is 0.438 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
PM Style Engagement to Holder HD Size 2
Body Length 2.75000
Weld Face Diameter 1.5
Pin Height 0.4375
For Nut Size 12 mm
Unit of Measure IN
