RWMA Stud Electrodes

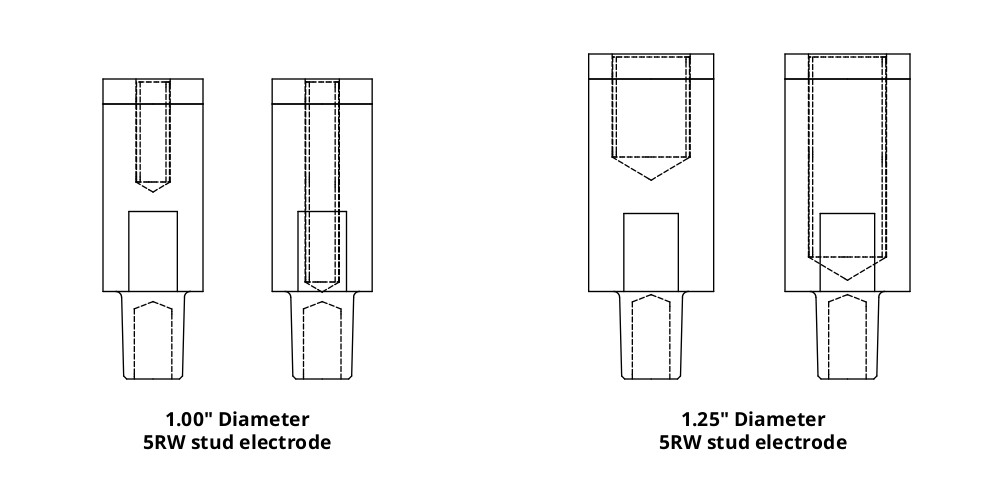

This series of Stud electrodes are made from RWMA Class 2 material with 10W (copper tungsten) on the weld face for longer life. The part has wrench flats for easy removal from holders.The insulator is made to withstand the constant friction that is applied as the stud is inserted and removed.
| Part | Description | Face Refractory Material | Base RWMA Material Type | Engagement to Holder | Overall Length | Weld Face Diameter | Bushing ID | Bushing Depth | For Srew Thread Size | Refractory Material Thickness | Unit of Measure |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 175-1313-40122-10W | 1313-40122-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.47900 | 1.000 | 12 mm | 0.250 | IN |
| 175-1313-4422-10W | 1313-4422-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.77700 | 2.000 | 3/4 | 0.250 | IN |
| 175-1313-4421-10W | 1313-4421-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.77700 | 2.000 | 3/4 | 0.250 | IN |
| 175-1313-4412-10W | 1313-4412-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.69400 | 1.000 | 11/16 | 0.250 | IN |
| 175-1313-4411-10W | 1313-4411-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.69400 | 2.000 | 11/16 | 0.250 | IN |
| 175-1313-4402-10W | 1313-4402-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.65200 | 1.000 | 5/8 | 0.250 | IN |
| 175-1313-4401-10W | 1313-4401-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.65200 | 2.000 | 5/8 | 0.250 | IN |
| 175-1313-4392-10W | 1313-4392-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.56900 | 1.000 | 9/16 | 0.250 | IN |
| 175-1313-4391-10W | 1313-4391-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.56900 | 2.000 | 9/16 | 0.250 | IN |
| 175-1313-4382-10W | 1313-4382-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.50600 | 1.000 | 1/2 | 0.250 | IN |
| 175-1313-4381-10W | 1313-4381-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.50600 | 2.000 | 1/2 | 0.250 | IN |
| 175-1313-4372-10W | 1313-4372-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.44400 | 1.000 | 7/16 | 0.250 | IN |
| 175-1313-4371-10W | 1313-4371-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.44400 | 2.000 | 7/16 | 0.250 | IN |
| 175-0316-4006-10W | 0316-4006-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.24300 | 1.000 | 6 mm | 0.250 | IN |
| 175-1313-4012-10W | 1313-4012-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 0.47900 | 2.000 | 12 mm | 0.250 | IN |
| 175-0316-4062-10W | 0316-4062-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.38100 | 1.000 | 3/8 | 0.250 | IN |
| 175-0316-4061-10W | 0316-4061-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.38100 | 2.000 | 3/8 | 0.250 | IN |
| 175-0316-4052-10W | 0316-4052-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.31900 | 1.000 | 5/16 (8mm) | 0.250 | IN |
| 175-0316-4051-10W | 0316-4051-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.31900 | 2.000 | 5/16 (8mm) | 0.250 | IN |
| 175-0316-4042-10W | 0316-4042-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.25600 | 1.000 | 1/4 | 0.250 | IN |
| 175-0316-4041-10W | 0316-4041-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.25600 | 2.000 | 1/4 | 0.250 | IN |
| 175-0316-4032-10W | 0316-4032-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.21800 | 1.000 | #10 | 0.250 | IN |
| 175-0316-4031-10W | 0316-4031-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.21800 | 2.000 | #10 | 0.250 | IN |
| 175-0316-40102-10W | 0316-40102-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.40000 | 1.000 | 10 mm | 0.250 | IN |
| 175-0316-4010-10W | 0316-4010-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.40000 | 2.000 | 10 mm | 0.250 | IN |
| 175-0316-40062-10W | 0316-40062-10W STUD ELEC. | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 0.24300 | 2.000 | 6 mm | 0.250 | IN |
