STD-6 TONGS, 6" PAIR
Part #: 813-040197
Request 3D Model

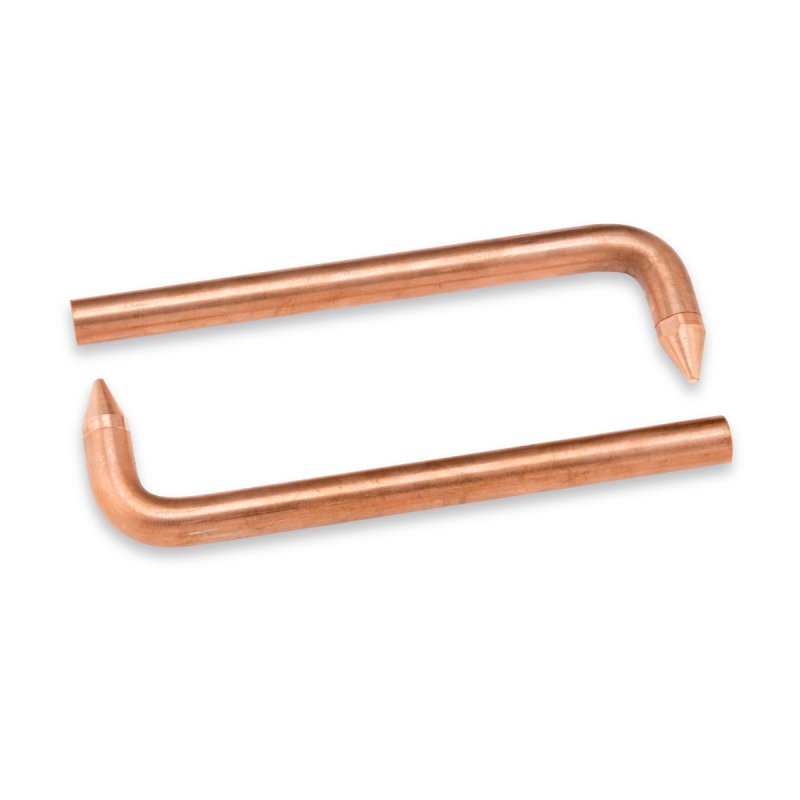

Standard 6" (152mm) air cooled tongs designed to be used with portable spot welding systems. Includes 1 pair of tongs and 1 set of tips. Spot welding tongs clamp onto a workpiece to hold a joint together and provide pressure for the spot welding process.
Copper is a highly conductive material capable of transferring electrical current in resistance welding operations.
- The overall length is 6.000 IN
- The outside diameter is 0.625 IN
- The part mounts via a 0.625 IN diameter
- The part holds a subcomponent via 3/8-24 threads
- For use with MSW and LMSW Series spot welders
- The part includes 1 pair of tongs and 1 set of tips
- Maximum welding capabilities are obtained with the minimum tong length.
Specifications
| Material Type | Copper |
|---|---|
| Outside Diameter | 0.625 |
| Thread for Electrode | 3/8 - 24 |
| Overall Length | 6.00000 |
| Offset | 3.5000 |
| Unit of Measure | IN |
