FH-5 TONGS, 5" PAIR
Part #: 813-040209
Request 3D Model

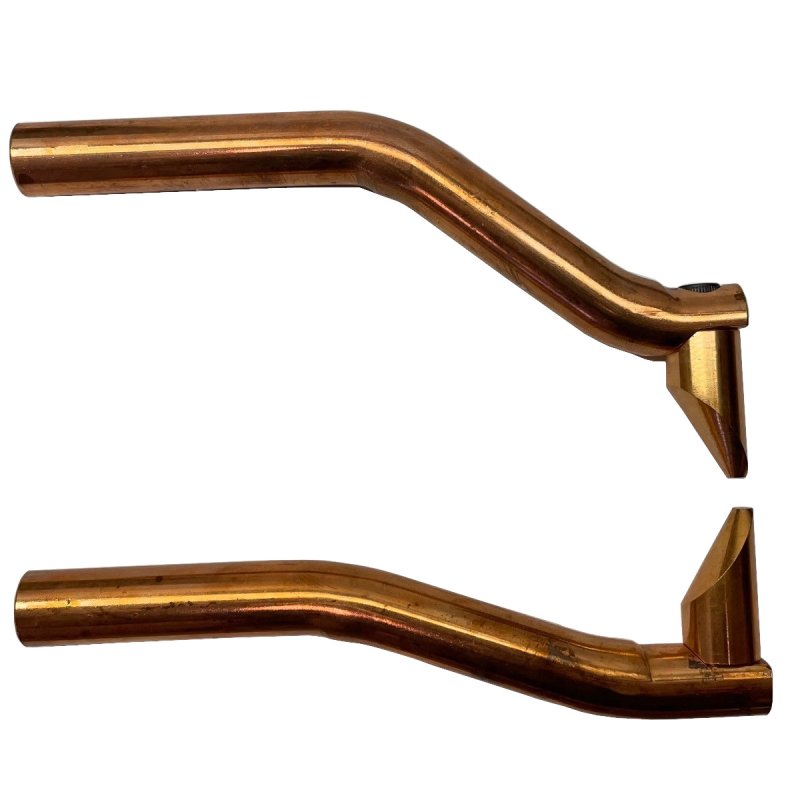

FH 5" (127mm) air cooled tongs designed to be used with portable spot welding systems. Includes 1 pair of tongs and 1 set of tips. Spot welding tongs clamp onto a workpiece to hold a joint together and provide pressure for the spot welding process.
Copper is a highly conductive material capable of transferring electrical current in resistance welding operations.
- The overall length is 5.000 IN
- The outside diameter is 0.625 IN
- The part mounts via a 0.625 IN diameter
- The part holds a subcomponent via 1/4-28 threads
- For use with MSW and LMSW Series spot welders
- The part includes 1 pair of tongs and 1 set of tips
- Maximum welding capabilities are obtained with the minimum tong length.
Specifications
| Material Type | Copper |
|---|---|
| Outside Diameter | 0.625 |
| Thread for Electrode | 1/4 - 28 |
| Overall Length | 5.00000 |
| Unit of Measure | IN |
