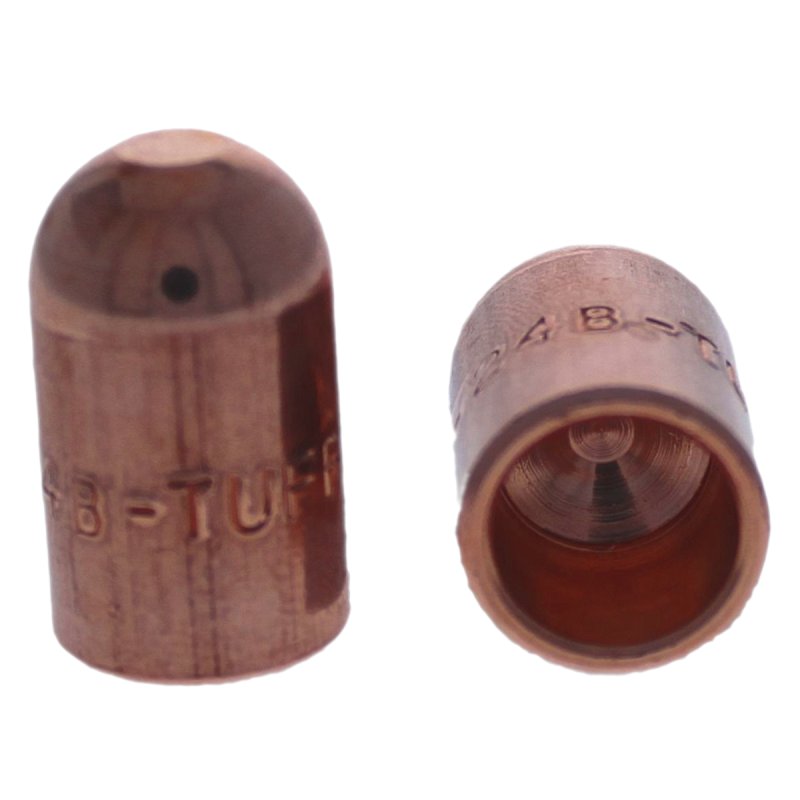

TP-24B TUFF CAP

Part #: 125-0242

Request 3D Model

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.8400 IN
The outside diameter is 0.500 IN
The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
The weld face is 0.188 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	4RW Cap Taper
Nose Type	B
Overall Length	0.84000
Outer Diameter	0.50000
Welding Face Dia.	0.188
Unit of Measure	IN
