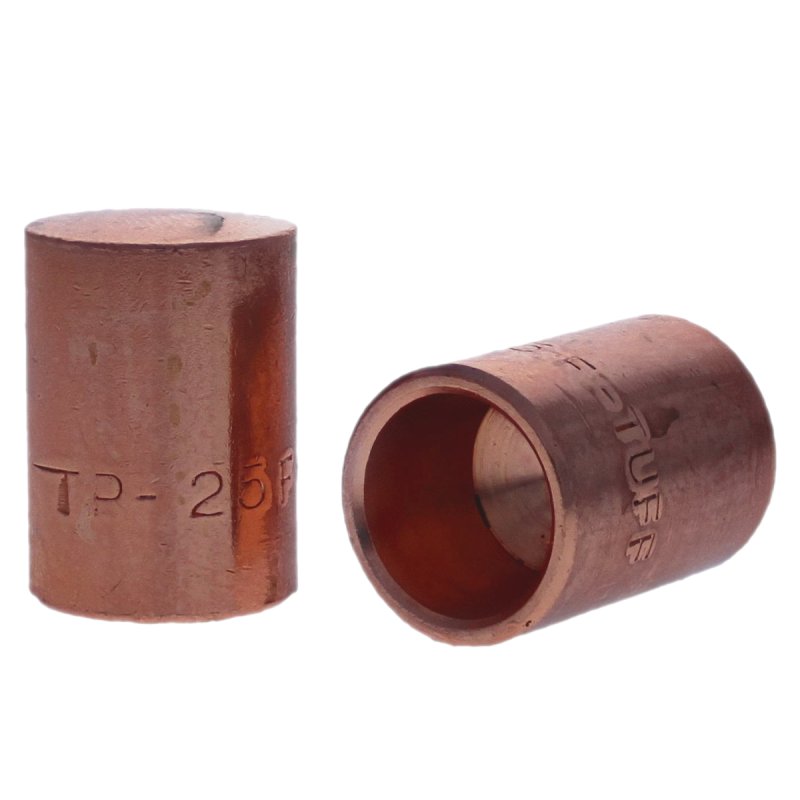

TP-26F TUFF CAP

Part #: 125-0266

Request 3D Model

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.0000 IN
The outside diameter is 0.750 IN
The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
The weld face is 2.75 inch radius

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	6RW Cap Taper
Nose Type	F
Overall Length	1.00000
Outer Diameter	0.75000
Welding Face Dia.	2.75 inch radius
Unit of Measure	IN
