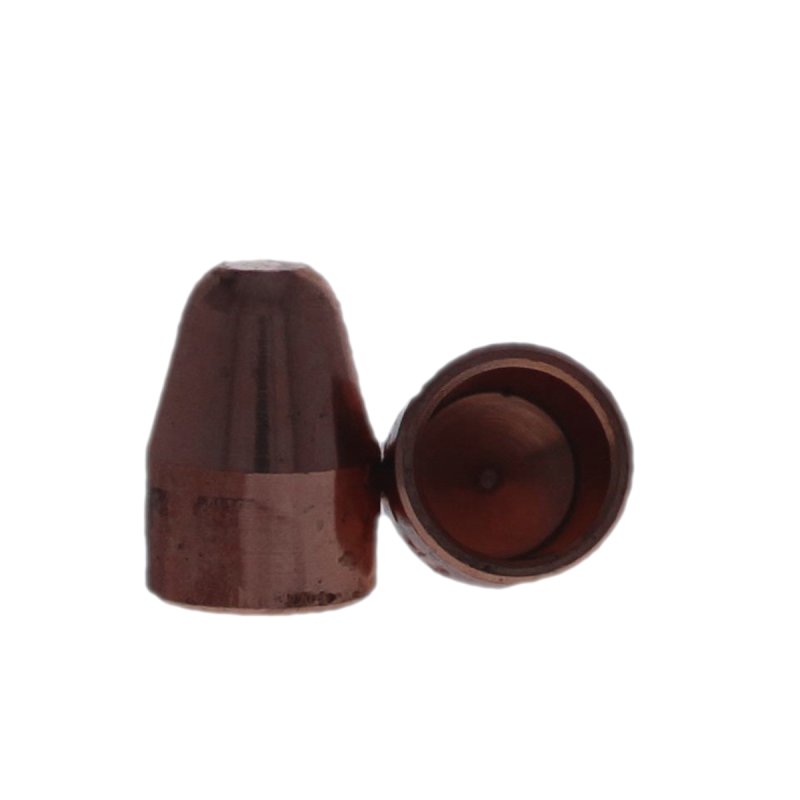

MW-6183 (5/8" FEMALE CAP) TUFF CAP

Part #: 125-0751

Request 3D Model

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 0.6300 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.25 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	5RW Cap Taper
Nose Type	A
Overall Length	0.63000
Outer Diameter	0.62500
Welding Face Dia.	0.25
Unit of Measure	IN
