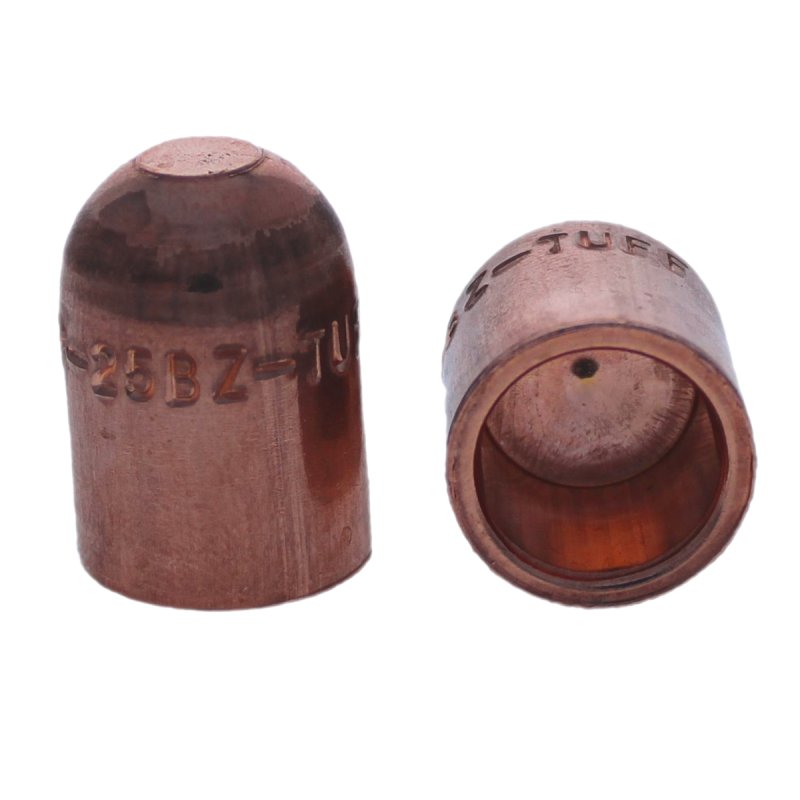

TP-25BZ CuCrZr TUFF CAP

TP-25BZ CuCrZr TUFF CAP

Part #: 126-0252

Request 3D Model

Request 3D Model


Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the nose wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 0.8750 IN
  • The outside diameter is 0.625 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The B nose or Dome face tip is the most commonly used weldface because the design accomodates misalignment problems as contact can still be made on the radius during welding.
  • The weld face is 0.25 IN

Specifications

RWMA Material Type RWMA Class 2 - C18150
RWMA Taper 5RW Cap Taper
Nose Type B
Overall Length 0.87500
Outer Diameter 0.62500
Welding Face Dia. 0.25
Unit of Measure IN
