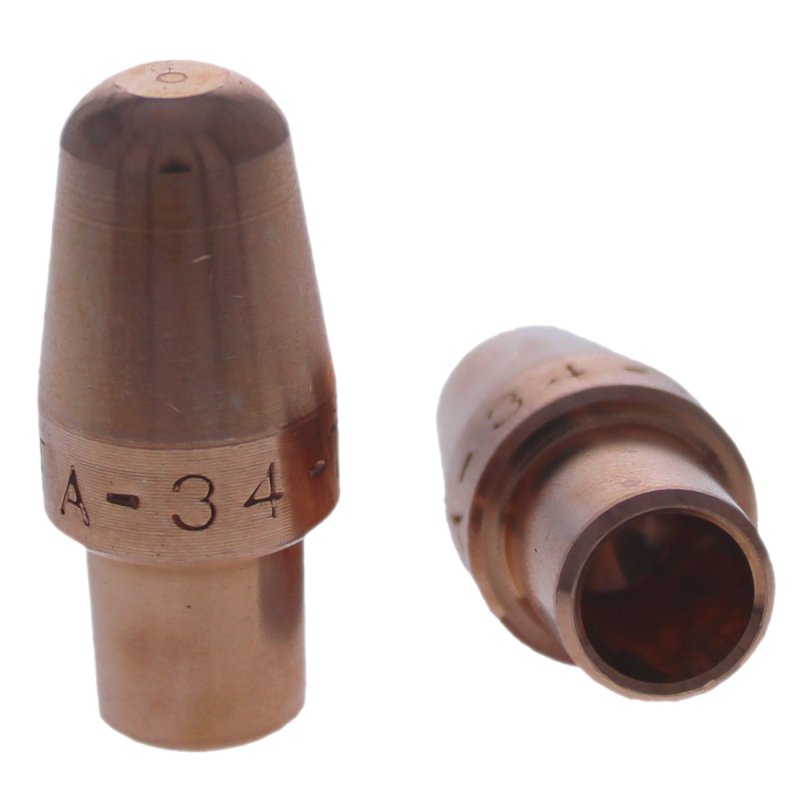

TA-34 TUFF CAP

TA-34 TUFF CAP

Part #: 122-1034

Request 3D Model

Request 3D Model


Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

  • The overall length is 1.1250 IN
  • The outside diameter is 0.500 IN
  • The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.19 IN
  • The taper length is 0.375 IN

Specifications

RWMA Material Type RWMA Class 3 - C18000
RWMA Taper 4RW Cap Taper
Nose Type A
Overall Length 1.12500
Outer Diameter 0.50000
Welding Face Dia. 0.19
Nose Length 0.7500
Taper Length 0.3750
Unit of Measure IN
