Straight Shanks for Female Cap

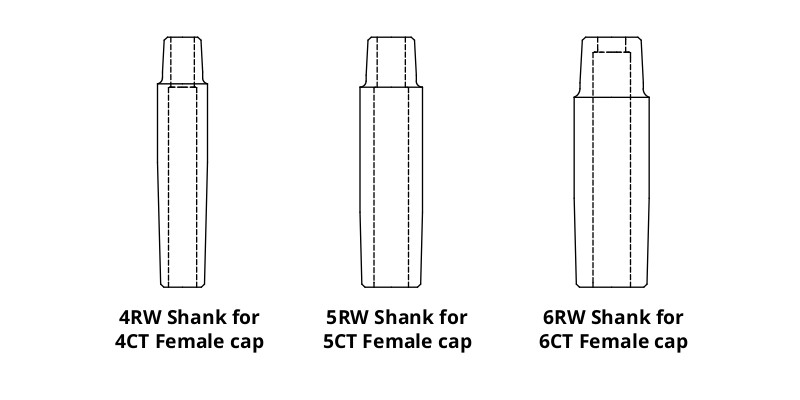

Tuffaloy Straight Shanks for Female Caps Header

Straight Shanks for Female Caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

The combination of shanks and caps are an economical way to reduce the tooling cost for an application because a cap tip is cheaper than a standard straight or double bend electrode.

It is recommended that a standard or double bend electrode is selected when spot welding heavily coated metals such as galvanized or tin-plate.

Part Description RWMA Material Type RWMA Base Taper RWMA Cap Taper Overall Length Outer Diameter Inner Diameter Assembled Length Unit of Measure
163-2616
TP-2616 SHANK (MW-1121-62) RWMA Class 2 - C18200 6RW 6RW Cap Taper 4.00000 0.75000 0.50000 4.5000 IN
163-2518
TP-2518 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.50000 0.62500 0.37500 5.0000 IN
163-2520
TP-2520 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 5.00000 0.62500 0.37500 5.5000 IN
163-2522
TP-2522 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 5.50000 0.62500 0.37500 6.0000 IN
163-2524
TP-2524 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 6.00000 0.62500 0.37500 6.5000 IN
163-2606
TP-2606 SHANK RWMA Class 2 - C18200 6RW 6RW Cap Taper 1.50000 0.75000 0.50000 2.0000 IN
163-2607
TP-2607 SHANK (MW-1121-53) RWMA Class 2 - C18200 6RW 6RW Cap Taper 1.75000 0.75000 0.50000 2.2500 IN
163-2608
TP-2608 SHANK (MW-1121-54) RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.00000 0.75000 0.50000 2.5000 IN
163-2609
TP-2609 SHANK (MW-1121-55) RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.25000 0.75000 0.50000 2.7500 IN
163-2610
TP-2610 SHANK (MW-1121-56) RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.50000 0.75000 0.50000 3.0000 IN
163-2611
TP-2611 SHANK (MW-1121-57) RWMA Class 2 - C18200 6RW 6RW Cap Taper 2.75000 0.75000 0.50000 3.2500 IN
163-2612
TP-2612 SHANK (MW-1121-58) RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.00000 0.75000 0.50000 3.5000 IN
163-2613
TP-2613 SHANK (MW-1121-59) RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.25000 0.75000 0.50000 3.7500 IN
163-2614
TP-2614 SHANK (MW-1121-60) RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.50000 0.75000 0.50000 4.0000 IN
163-2615
TP-2615 SHANK (MW-1121-61) RWMA Class 2 - C18200 6RW 6RW Cap Taper 3.75000 0.75000 0.50000 4.2500 IN
163-2517
TP-2517 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.25000 0.62500 0.37500 4.7500 IN
163-2617
TP-2617 SHANK (MW-1121-63) RWMA Class 2 - C18200 6RW 6RW Cap Taper 4.25000 0.75000 0.50000 4.7500 IN
163-2619
TP-2619 SHANK (MW-1121-65) RWMA Class 2 - C18200 6RW 6RW Cap Taper 4.75000 0.75000 0.50000 5.2500 IN
163-3406
TP-3406 SHANK (MW3-645-53) RWMA Class 3 - C18000 4RW 4RW Cap Taper 1.50000 0.50000 0.28125 2.0000 IN
163-3407
TP-3407 SHANK (MW3-645-54 RWMA Class 3 - C18000 4RW 4RW Cap Taper 1.75000 0.50000 0.28125 2.2500 IN
163-3408
TP-3408 SHANK (MW3-645-55) RWMA Class 3 - C18000 4RW 4RW Cap Taper 2.00000 0.50000 0.28125 2.5000 IN
163-3409
TP-3409 SHANK (MW3-645-56) RWMA Class 3 - C18000 4RW 4RW Cap Taper 2.25000 0.50000 0.28125 2.7500 IN
163-3410
TP-3410 SHANK (MW3-645-57) RWMA Class 3 - C18000 4RW 4RW Cap Taper 2.50000 0.50000 0.28125 3.0000 IN
163-3411
TP-3411 SHANK (MW3-645-58) RWMA Class 3 - C18000 4RW 4RW Cap Taper 2.75000 0.50000 0.28125 3.2500 IN
163-3412
TP-3412 SHANK (MW3-645-59) RWMA Class 3 - C18000 4RW 4RW Cap Taper 3.00000 0.50000 0.28125 3.5000 IN
163-3414
TP-3414 SHANK (MW3-645-61) RWMA Class 3 - C18000 4RW 4RW Cap Taper 3.50000 0.50000 0.28125 4.0000 IN
163-3416
TP-3416 SHANK (MW3-645-62) RWMA Class 3 - C18000 4RW 4RW Cap Taper 4.00000 0.50000 0.28125 4.5000 IN
163-3508
TP-3508 SHANK (WB1-2T3506) RWMA Class 3 - C18000 5RW 5RW Cap Taper 2.00000 0.62500 0.37500 2.5000 IN
163-3509
TP-3509 SHANK (WB1-2T3507) RWMA Class 3 - C18000 5RW 5RW Cap Taper 2.25000 0.62500 0.37500 2.7500 IN
163-3510
TP-3510 SHANK (WB1-2T3508) RWMA Class 3 - C18000 5RW 5RW Cap Taper 2.50000 0.62500 0.37500 3.0000 IN
163-2422
TP-2422 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 5.50000 0.50000 0.28125 6.0000 IN
163-2406
TP-2406 SHANK (MW-645-53) RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.50000 0.50000 0.28125 2.0000 IN
163-2407
TP-2407 SHANK (MW-645-54) RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.75000 0.50000 0.28125 2.2500 IN
163-2408
TP-2408 SHANK (MW-645-55) RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.00000 0.50000 0.28125 2.5000 IN
163-2409
TP-2409 SHANK (MW-645-56) RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.25000 0.50000 0.28125 2.7500 IN
163-2410
TP-2410 SHANK (MW-645-57) RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.50000 0.50000 0.28125 3.0000 IN
163-2411
TP-2411 SHANK (MW-645-58) RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.50000 0.28125 3.2500 IN
163-2412
TP-2412 SHANK (MW-645-59) RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.00000 0.50000 0.28125 3.5000 IN
163-2413
TP-2413 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.25000 0.50000 0.28125 3.7500 IN
163-2414
TP-2414 SHANK (MW-645-61) RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.50000 0.50000 0.28125 4.0000 IN
163-2415
TP-2415 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.75000 0.50000 0.28125 4.2500 IN
163-2416
TP-2416 SHANK (MW-645-62) RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.00000 0.50000 0.28125 4.5000 IN
163-2417
TP-2417 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.25000 0.50000 0.28125 4.7500 IN
163-2418
TP-2418 SHANK (MW-645-63) RWMA Class 2 - C18200 4RW 4RW Cap Taper 4.50000 0.50000 0.28125 5.0000 IN
163-2420
TP-2420 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 5.00000 0.50000 0.28125 5.5000 IN
163-2404
TP-2404 SHK (MW-645-51) RWMA Class 2 - C18200 4RW 4RW Cap Taper 1.00000 0.50000 0.28125 1.5000 IN
163-2424
TP-2424 SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 6.00000 0.50000 0.28125 6.5000 IN
163-2506
TP-2506 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.50000 0.62500 0.37500 2.0000 IN
163-2507
TP-2507 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 1.75000 0.62500 0.37500 2.2500 IN
163-2508
TP-2508 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.00000 0.62500 0.37500 2.5000 IN
163-2508-BH
TP-2508-BH SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.00000 0.62500 0.37500 2.5000 IN
163-2509
TP-2509 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.25000 0.62500 0.37500 2.7500 IN
163-2510
TP-2510 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.50000 0.62500 0.37500 3.0000 IN
163-2511
TP-2511 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 0.37500 3.2500 IN
163-2512
TP-2512 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.00000 0.62500 0.37500 3.5000 IN
163-2513
TP-2513 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.25000 0.62500 0.37500 3.7500 IN
163-2514
TP-2514 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.50000 0.62500 0.37500 4.0000 IN
163-2515
TP-2515 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.75000 0.62500 0.37500 4.2500 IN
163-2516
TP-2516 SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 4.00000 0.62500 0.37500 4.5000 IN
