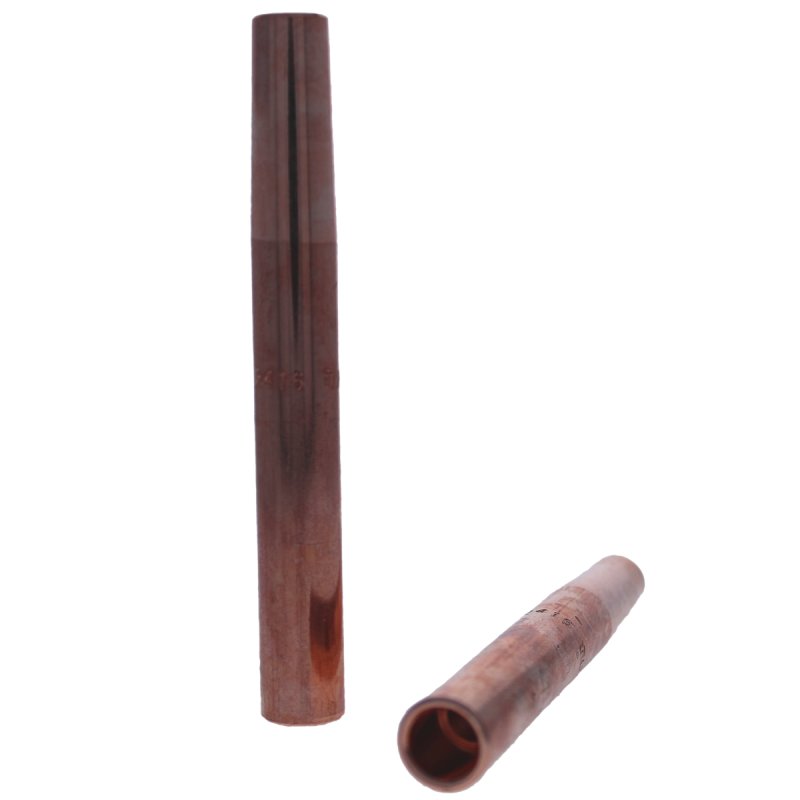

TG-2415 SHANK

Part #: 161-2415

Request 3D Model

Straight shanks for male caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.75 IN
The outside diameter is 0.500 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The part holds a subcomponent via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The assembled length is 4.50 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Base Taper	4RW
RWMA Cap Taper	4RW Cap Taper
Overall Length	3.75000
Outer Diameter	0.50000
Inner Diameter	0.28125
Assembled Length	4.5000
Unit of Measure	IN
