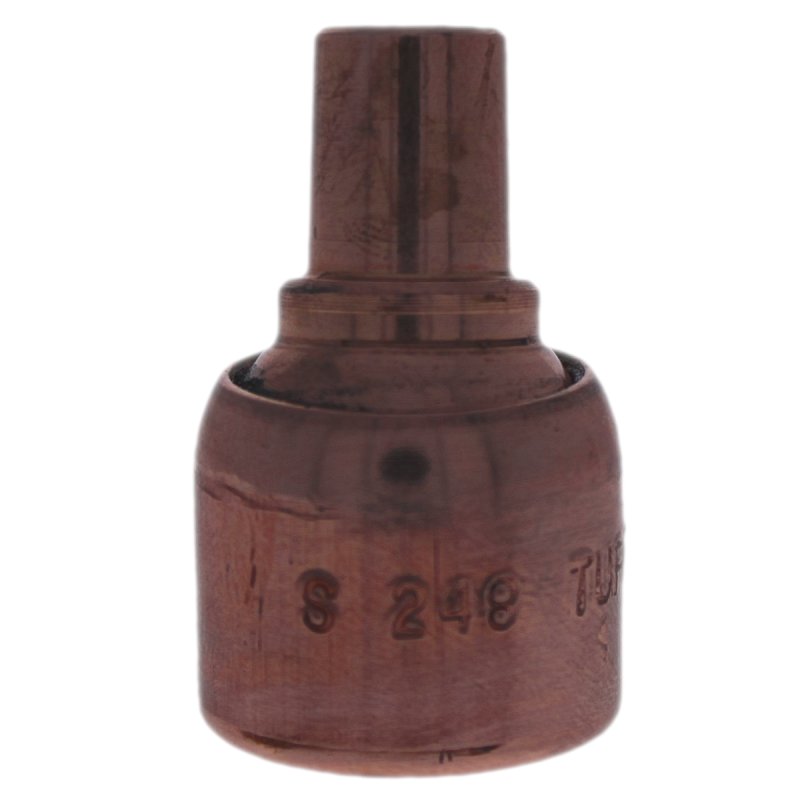

S-248 SWIVEL TIP

S-248 SWIVEL TIP

Part #: 182-0248

Request 3D Model

Request 3D Model


Swivel tips have a ball-jointed swivel head to compensate for misalignment, and to eliminate marking of the work surface for cosmetic welds.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 1.438 IN
  • The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The weld face is 0.875 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 5RW Cap Taper
Overall Length 1.43750
Welding Face Dia. 0.875
Unit of Measure IN
