TH-3450-16-E THREADED ELECT.

TH-3450-16-E THREADED ELECT.

Part #: 188-3450-16-E

Request 3D Model

Request 3D Model

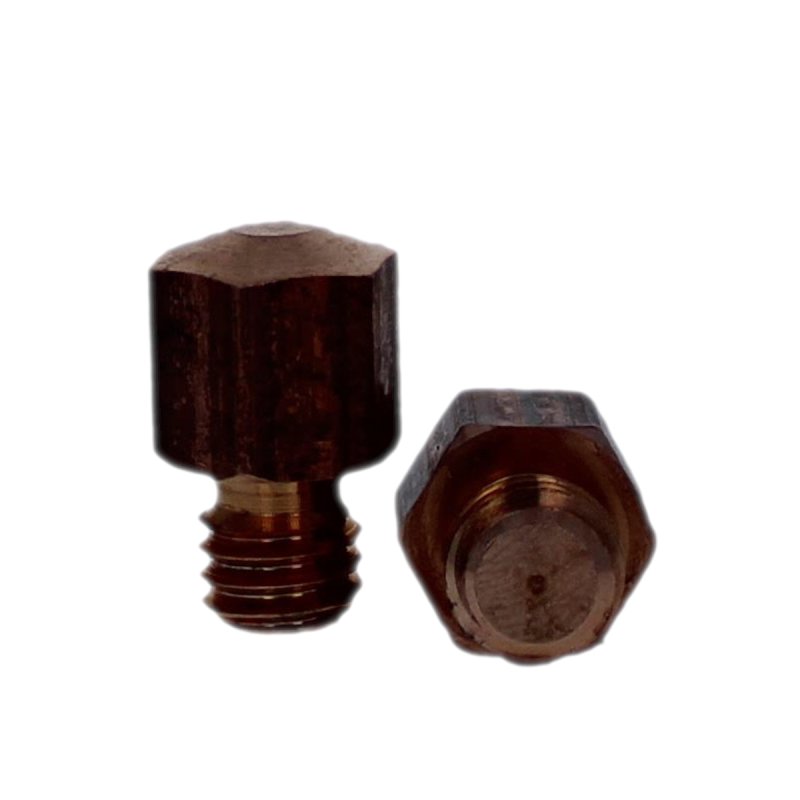

Threaded tips have a low profile for welds where space is a premium. In addition, these electrodes can be used for welding at higher forces than parts with a standard RWMA taper.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

  • The overall length is 0.875 IN
  • The hex width is 0.500 IN
  • The part mounts to the holder via 3/8-16 threads.
  • The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
  • The weld face is 0.19 IN

Specifications

RWMA Material Type RWMA Class 3 - C18000
Thread Size 3/8-16
Nose Type E
Overall Length 0.87500
Hex Size 0.50000
Welding Face Dia. 0.19
Hex Body Length 0.5000
Unit of Measure IN
Nose Angle 20.0
