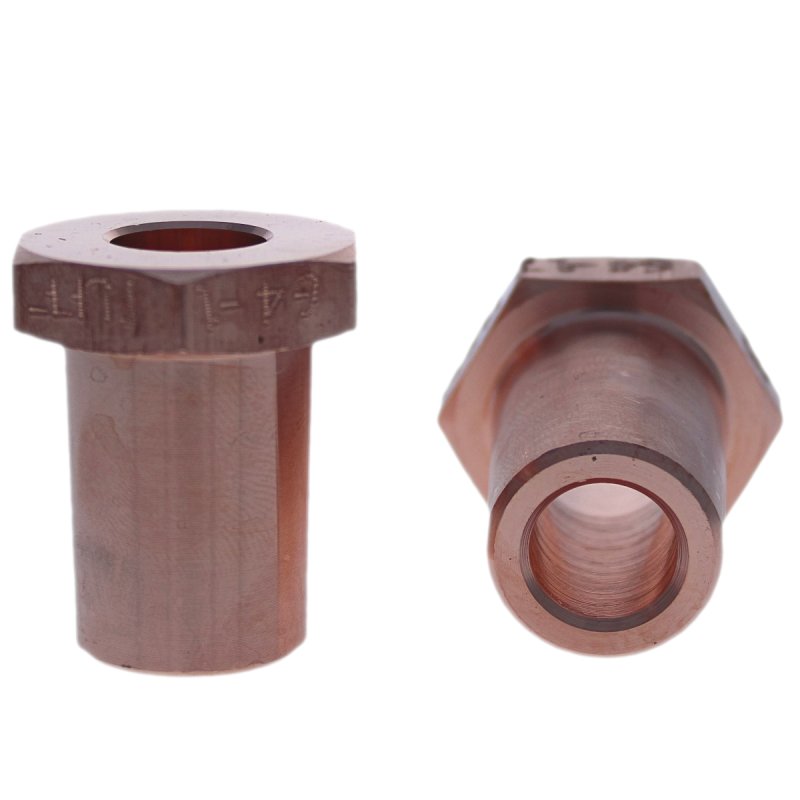

AD-64-1 ADAPTER

AD-64-1 ADAPTER

Part #: 190-6410

Request 3D Model

Request 3D Model


Electrode Adapters are used to improve electrode holder life and flexibility by allowing the adapter to be replaced when the taper wears out.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 1.250 IN
  • The hex width is 1.000 IN
  • The part mounts via a 6RW standard taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The body length is 0.250 IN

Specifications

RWMA Material Type RWMA Class 2
Pipe Thread or Taper 6RW
Taper Socket 4RW
Overall Length 1.25000
Hex Body Size 1.00000
Body Length 0.2500
Unit of Measure IN
