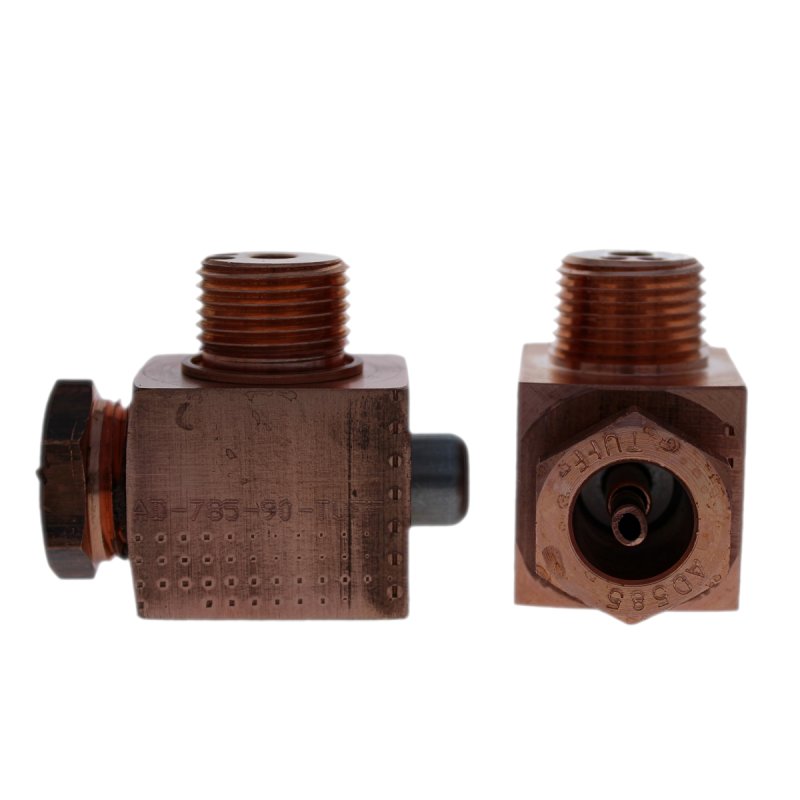

AD-785-90 EJECTOR ADAPTER

AD-785-90 EJECTOR ADAPTER

Part #: 190-9591

Request 3D Model

Request 3D Model


Electrode Angle Adapters are used to improve the holder life and flexibility by allowing users to select different angles for tooling setups. The adapter can also be replaced when the taper wears out.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 1.875 IN
  • The part width is 1.250 IN
  • The part mounts via 7/8 -14 NPT threads.
  • The part holds a subcomponent via 5/8 NPT threads.
  • The body length is 1.250 IN
  • The offset is 1.500 IN
  • The engagement angle is 90 Degrees
  • Ejector Type Part

Specifications

RWMA Material Type RWMA Class 2
Pipe Thread or Taper 7/8 -14 NPT
Taper Socket 5/8 - 14 NPT
Overall Length 1.87500
Offset 1.5000
Body Length 1.2500
Width of Body 1.25000
Unit of Measure IN
Angle of Engagement (deg) 90.0
Tube Yes
Ejector Type Yes
