Backup Electrodes for Uppers

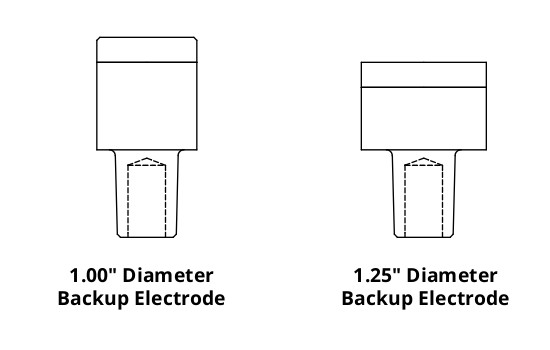

Backup Electrodes for Uppers are made with a 10W weld face for longer life. They are available in a variety of faces sizes and can be customized to accommodate virtually any pin and or nut size.
| Part | Description | Face Refractory Material | Base RWMA Material Type | Engagement to Holder | Overall Length | Weld Face Diameter | Length of Body | Refractory Material Thickness | Unit of Measure |
|---|---|---|---|---|---|---|---|---|---|
| 186-0311-10W | 311-10W FACED TIP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 2.00000 | 1 | 1.1250 | 0.250 | IN |
| 186-0313-10W | 313-10W FACED TIP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 1.75000 | 1.25 | 0.8750 | 0.250 | IN |
| 186-0316-10W | 316-10W FACED TIP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.00000 | 1 | 2.1250 | 0.250 | IN |
| 186-1313-10W | 1313-10W TIP | RWMA Class 11 - 10W | RWMA Class 2 - C18200 | 5RW | 3.25000 | 1.25 | 2.3750 | 0.250 | IN |
