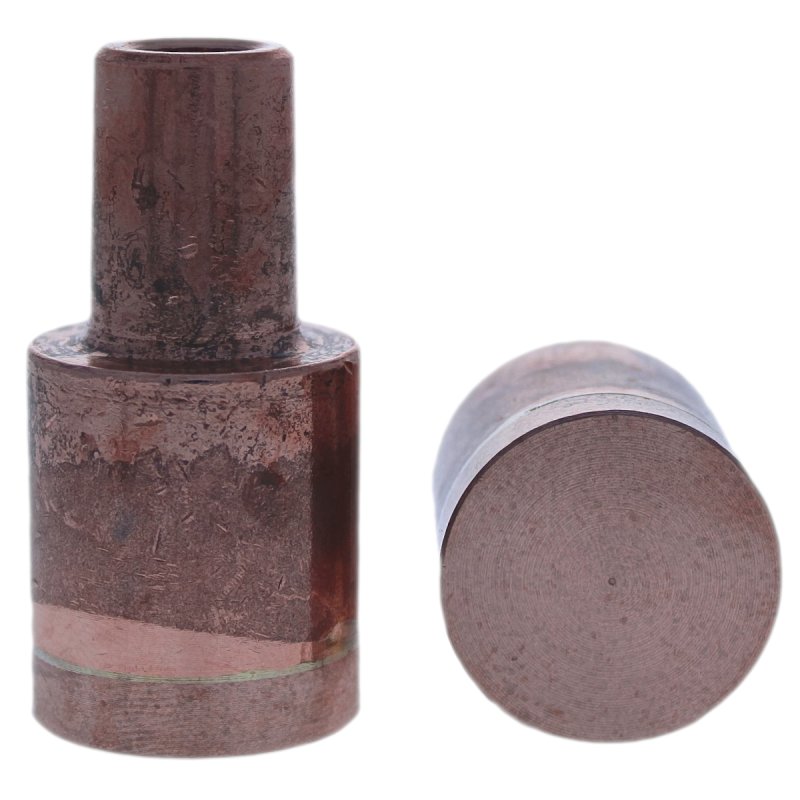

311-10W FACED TIP
Part #: 186-0311-10W
Request 3D Model
Backup Electrodes for Uppers have a refractory metal face which has greater wear resistance than copper.
A refractory metal face is made of RWMA Class 11 (75% tungsten, 25% copper) (ASTM 702 C1D) is brazed onto the base material. This face is typically used for welding at higher pressure and heat common with projection welding.
- The overall length is 2.000 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The weld face is 1 IN
See ways to use this part
Click the video title to watch on YouTube
Specifications
| Face Refractory Material | RWMA Class 11 - 10W |
|---|---|
| Base RWMA Material Type | RWMA Class 2 - C18200 |
| Engagement to Holder | 5RW |
| Overall Length | 2.00000 |
| Weld Face Diameter | 1 |
| Length of Body | 1.1250 |
| Refractory Material Thickness | 0.250 |
| Unit of Measure | IN |
