302 TIP
Part #: 186-0302
Request 3D Model

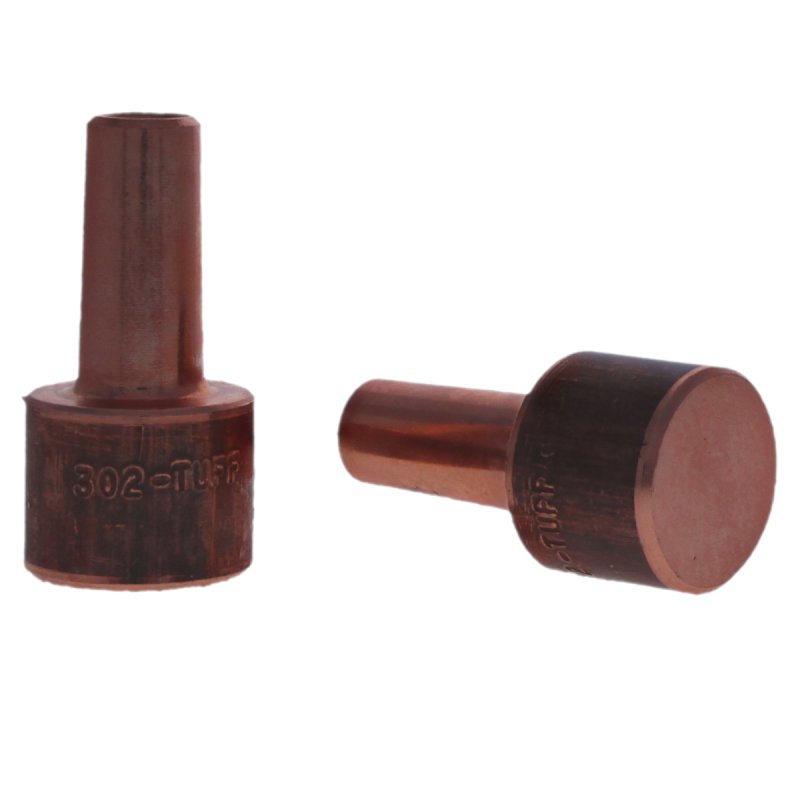

Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 1.750 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The weld face is 0.875 IN
See ways to use this part
Click the video title to watch on YouTube
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| RWMA Taper | 4RW |
| Overall Length | 1.75000 |
| Weld Face Dimension | 0.875 |
| Length of Body | 0.6875 |
| Unit of Measure | IN |
