Bent Shanks for Female Caps

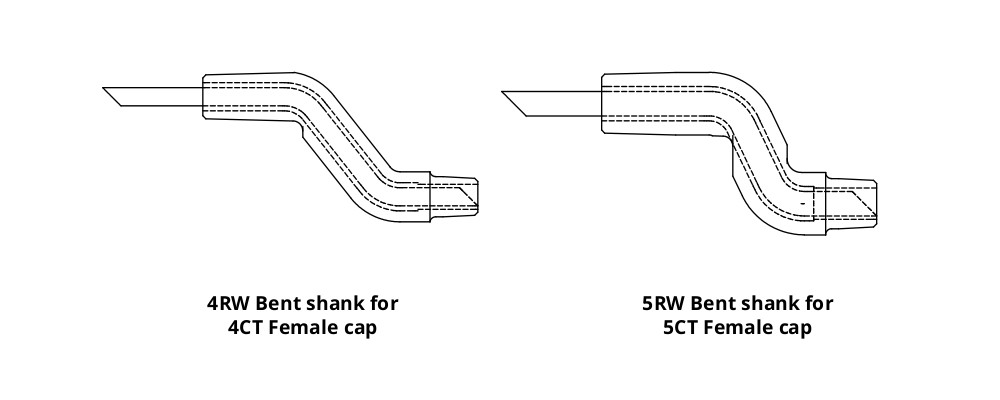

Tuffaloy Double Bend Shank for Female Caps Header

Bent Shanks for Female Caps are a cost effective way to utilize female caps on any standard rocker arm, press type, robot or bench mounted machine where an offset is required. The dobule bend profile allows the user to weld in tight spaces or around obstrucitons.

The combination of shanks and caps are an economical way to reduce the tooling cost for an application as a cap electrode is cheaper than a standard straight or double bend electrode.

It is recommended that a standard straight or double bend electrode is selected when spot welding heavily coated metals such as galvanized or tin-plate.

PartDescription RWMA Material Type RWMA Base Taper RWMA Cap Taper Overall Length Outer Diameter Offset Inner Diameter Assembled Length Unit of Measure Tube
164-2442
TP-2411-08 BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.50000 0.5000 0.28125 3.2500 IN Yes
164-2445
TP-2411-12 BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.50000 0.7500 0.28125 3.2500 IN Yes
164-2447
TP-2411-16 BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.50000 1.0000 0.28125 3.2500 IN Yes
164-2447-NT
TP-2411-16-NT BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 2.75000 0.50000 1.0000 0.28125 3.2500 IN No
164-2465
TP-2413-08 BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.25000 0.50000 0.5000 0.28125 3.7500 IN Yes
164-2480
TP-2413-20 BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.25000 0.50000 1.2500 0.28125 3.7500 IN Yes
164-2480-NT
TP-2413-20-NT BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.25000 0.50000 1.2500 0.28125 3.7500 IN No
164-2490
TP-2414-16 BENT SHANK RWMA Class 2 - C18200 4RW 4RW Cap Taper 3.50000 0.50000 1.0000 0.28125 4.0000 IN Yes
164-2542
TP-2511-08 BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 0.5000 0.37500 3.2500 IN Yes
164-2542-NT
TP-2511-08-NT BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 0.5000 0.37500 3.2500 IN No
164-2545
TP-2511-12 BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 0.7500 0.37500 3.2500 IN Yes
164-2547
TP-2511-16 BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 1.0000 0.37500 3.2500 IN Yes
164-2547-NT
TP-2511-16-NT BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 2.75000 0.62500 1.0000 0.37500 3.2500 IN No
164-2565
TP-2513-08 BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.25000 0.62500 0.5000 0.37500 3.7500 IN Yes
164-2570
TP-2513-16 BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.25000 0.62500 1.0000 0.37500 3.7500 IN Yes
164-2580
TP-2513-20 BENT SHANK RWMA Class 2 - C18200 5RW 5RW Cap Taper 3.25000 0.62500 1.2500 0.37500 3.7500 IN Yes
