Straight Holders

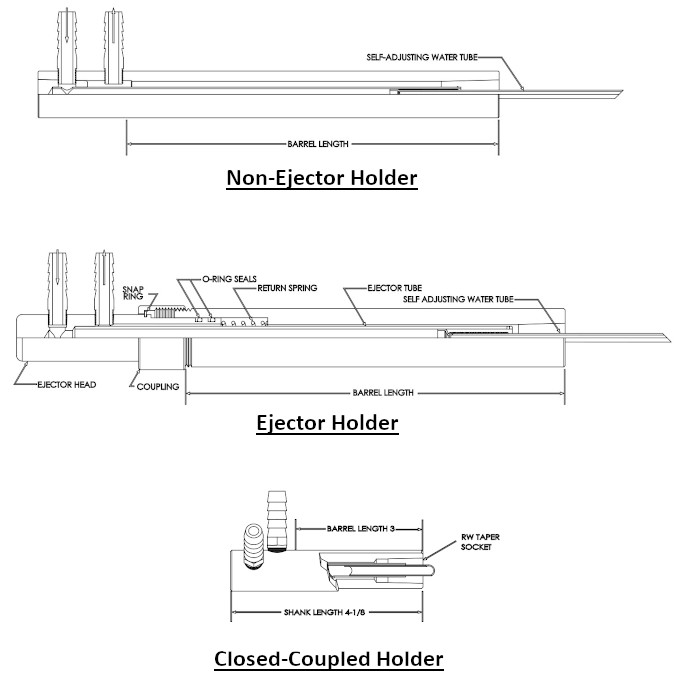

Tuffaloy Straight Holder Collage Header

Straight holders or barrel holders have a simple design to minimize the maintenance costs for users. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life. Straight holders are designed for use with Rocker Arm and Pedestal Type welders. Some of the holders are available with a replaceable threaded electrode adapter to extend the life of the holder.

  • The Goldspot Non-Ejector holders have a self adjusting watertube to ensure cooling reaches the tip.
  • The Goldcrown Ejector Style Straight Holder allows the user to quickly remove an electrode for quick change over or tip replacement.
  • The Nickel Plated Ejector Holders provide corrosion resistance and super conductivity.
  • The Closed-Couple design have the water hose barbs angled at 60 degrees for use when space is critical.
PartDescription RWMA Material Type RMWA Taper Holder Type Barrel Length Barrel Dia. Unit of Measure Ejector Type Adapter Included Nickel Plating Angle Between Tubes (Closed Coupled)
320-0385
E-12086-A HOLDER RWMA Class 2 6RW Goldcrown Ejector 8.00000 1.50000 IN Yes Yes No
319-0206
NHE-08035 NICKEL HOLDER RWMA Class 2 5RW Nickel Plated Ejector 3.00000 1.00000 IN Yes No Yes
319-0207
NHE-10035 NICKEL HOLDER RWMA Class 2 5RW Nickel Plated Ejector 3.00000 1.25000 IN Yes No Yes
319-0211
NHE-06084 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 8.00000 0.75000 IN Yes No Yes
319-0212
NHE-07084 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 8.00000 0.87500 IN Yes No Yes
319-0213
NHE-08084 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 8.00000 1.00000 IN Yes No Yes
319-0214
NHE-10084 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 8.00000 1.25000 IN Yes No Yes
319-0216
NHE-08085 NICKEL HOLDER RWMA Class 2 5RW Nickel Plated Ejector 8.00000 1.00000 IN Yes No Yes
319-0217
NHE-10085 NICKEL HOLDER RWMA Class 2 5RW Nickel Plated Ejector 8.00000 1.25000 IN Yes No Yes
319-0231
NHE-06124 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 12.00000 0.75000 IN Yes No Yes
319-0232
NHE-07124 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 12.00000 0.87500 IN Yes No Yes
319-0233
NHE-08124 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 12.00000 1.00000 IN Yes No Yes
319-0234
NHE-10124 NICKEL HOLDER RWMA Class 2 4RW Nickel Plated Ejector 12.00000 1.25000 IN Yes No Yes
319-0236
NHE-08125 NICKEL HOLDER RWMA Class 2 5RW Nickel Plated Ejector 12.00000 1.00000 IN Yes No Yes
319-0237
NHE-10125 NICKEL HOLDER RWMA Class 2 5RW Nickel Plated Ejector 12.00000 1.25000 IN Yes No Yes
320-0100
E-05084 HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 0.62500 IN Yes No No
320-0120
E-05124 HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 0.62500 IN Yes No No
320-0140
E-06084 HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 0.75000 IN Yes No No
320-0150
E-06085 HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 0.75000 IN Yes No No
320-0160
E-06124 HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 0.75000 IN Yes No No
320-0170
E-06125 HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 0.75000 IN Yes No No
320-0180
E-07084 HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 0.87500 IN Yes No No
320-0190
E-07085 HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 0.87500 IN Yes No No
320-0200
E-07124 HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 0.87500 IN Yes No No
320-0210
E-07125 HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 0.87500 IN Yes No No
320-0220
E-08084 HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 1.00000 IN Yes No No
320-0225
E-08084-A HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 1.00000 IN Yes Yes No
320-0230
E-08085 HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.00000 IN Yes No No
320-0235
E-08085-A HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.00000 IN Yes Yes No
320-0240
E-08086 HOLDER RWMA Class 2 6RW Goldcrown Ejector 8.00000 1.00000 IN Yes No No
320-0250
E-08124 HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 1.00000 IN Yes No No
320-0255
E-08124-A HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 1.00000 IN Yes Yes No
320-0260
E-08125 HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 1.00000 IN Yes No No
320-0265
E-08125-A HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 1.00000 IN Yes Yes No
320-0270
E-08126 HOLDER RWMA Class 2 6RW Goldcrown Ejector 12.00000 1.00000 IN Yes No No
320-0280
E-10084 HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 1.25000 IN Yes No No
320-0285
E-10084 A HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.25000 IN Yes Yes No
320-0290
E-10085 HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.25000 IN Yes No No
320-0295
E-10085-A HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.25000 IN Yes Yes No
320-0300
E-10086 HOLDER RWMA Class 2 6RW Goldcrown Ejector 8.00000 1.25000 IN Yes No No
320-0310
E-10087 HOLDER RWMA Class 2 7RW Goldcrown Ejector 8.00000 1.25000 IN Yes No No
320-0320
E-10124 HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 1.25000 IN Yes No No
320-0325
E-10124-A HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 1.25000 IN Yes Yes No
320-0330
E-10125 HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 1.25000 IN Yes No No
320-0335
E-10125 A HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 1.25000 IN Yes Yes No
320-0340
E-10126 HOLDER RWMA Class 2 6RW Goldcrown Ejector 12.00000 1.25000 IN Yes No No
320-0350
E-10127 HOLDER RWMA Class 2 7RW Goldcrown Ejector 12.00000 1.25000 IN Yes No No
320-0360
E-12084 HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 1.50000 IN Yes No No
320-0365
E-12084-A HOLDER RWMA Class 2 4RW Goldcrown Ejector 8.00000 1.50000 IN Yes Yes No
320-0370
E-12085 HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.50000 IN Yes No No
320-0375
E-12085-A HOLDER RWMA Class 2 5RW Goldcrown Ejector 8.00000 1.50000 IN Yes Yes No
320-0380
E-12086 HOLDER RWMA Class 2 6RW Goldcrown Ejector 8.00000 1.50000 IN Yes No No
320-0390
E-12087 HOLDER RWMA Class 2 7RW Goldcrown Ejector 8.00000 1.50000 IN Yes No No
320-0410
E-12124 HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 1.50000 IN Yes No No
320-0415
E-12124-A HOLDER RWMA Class 2 4RW Goldcrown Ejector 12.00000 1.50000 IN Yes Yes No
320-0420
E-12125 HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 1.50000 IN Yes No No
320-0425
E-12125-A HOLDER RWMA Class 2 5RW Goldcrown Ejector 12.00000 1.50000 IN Yes Yes No
320-0440
E-12126 HOLDER RWMA Class 2 6RW Goldcrown Ejector 12.00000 1.50000 IN Yes No No
320-0450
E-12127 HOLDER RWMA Class 2 7RW Goldcrown Ejector 12.00000 1.50000 IN Yes No No
320-1000
LDE-08064 HOLDER RWMA Class 2 4RW Goldcrown Ejector 6.00000 1.00000 IN Yes No No
320-1005
LDE-08065 HOLDER RWMA Class 2 5RW Goldcrown Ejector 6.00000 1.00000 IN Yes No No
325-0100
N-05084 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 0.62500 IN No No No
325-0120
N-05124 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 0.62500 IN No No No
325-0140
N-06084 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 0.75000 IN No No No
325-0150
N-06085 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 0.75000 IN No No No
325-0160
N-06124 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 0.75000 IN No No No
325-0170
N-06125 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 0.75000 IN No No No
325-0180
N-07084 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 0.87500 IN No No No
325-0190
N-07085 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 0.87500 IN No No No
325-0200
N-07124 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 0.87500 IN No No No
325-0210
N-07125 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 0.87500 IN No No No
325-0220
N-08084 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 1.00000 IN No No No
325-0225
N-08084-A HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 1.00000 IN No Yes No
325-0230
N-08085 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 1.00000 IN No No No
325-0235
N-08085-A HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 1.00000 IN No Yes No
325-0240
N-08086 HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 8.00000 1.00000 IN No No No
325-0250
N-08124 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 1.00000 IN No No No
325-0255
N-08124-A HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 1.00000 IN No Yes No
325-0260
N-08125 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 1.00000 IN No No No
325-0265
N-08125-A HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 1.00000 IN No Yes No
325-0270
N-08126 HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 12.00000 1.00000 IN No No No
325-0280
N-10084 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 1.25000 IN No No No
325-0285
N-10084-A HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 1.25000 IN No Yes No
325-0290
N-10085 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 1.25000 IN No No No
325-0295
N-10085-A HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 1.25000 IN No Yes No
325-0300
N-10086 HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 8.00000 1.25000 IN No No No
325-0310
N-10087 HOLDER RWMA Class 2 7RW Goldspot Non-Ejector 8.00000 1.25000 IN No No No
325-0315
N-10087-A HOLDER RWMA Class 2 7RW Goldspot Non-Ejector 8.00000 1.25000 IN No Yes No
325-0320
N-10124 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 1.25000 IN No No No
325-0325
N-10124-A HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 1.25000 IN No Yes No
325-0330
N-10125 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 1.25000 IN No No No
325-0335
N-10125-A HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 1.25000 IN No Yes No
325-0340
N-10126 HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 12.00000 1.25000 IN No No No
325-0350
N-10127 HOLDER RWMA Class 2 7RW Goldspot Non-Ejector 12.00000 1.25000 IN No No No
325-0360
N-12084 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 1.50000 IN No No No
325-0365
N-12084-A HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 8.00000 1.50000 IN No Yes No
325-0370
N-12085 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 1.50000 IN No No No
325-0375
N-12085-A HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 8.00000 1.50000 IN No Yes No
325-0380
N-12086 HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 8.00000 1.50000 IN No No No
325-0385
N-12086-A HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 8.00000 1.50000 IN No Yes No
325-0390
N-12087 HOLDER RWMA Class 2 7RW Goldspot Non-Ejector 8.00000 1.50000 IN No No No
325-0410
N-12124 HOLDER RWMA Class 2 4RW Goldspot Non-Ejector 12.00000 1.50000 IN No No No
325-0420
N-12125 HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 1.50000 IN No No No
325-0425
N-12125-A HOLDER RWMA Class 2 5RW Goldspot Non-Ejector 12.00000 1.50000 IN No Yes No
325-0440
N-12126 HOLDER RWMA Class 2 6RW Goldspot Non-Ejector 12.00000 1.50000 IN No No No
325-0450
N-12127 HOLDER RWMA Class 2 7RW Goldspot Non-Ejector 12.00000 1.50000 IN No No No
330-0140
N-06034 HOLDER RWMA Class 2 4RW Closed-Coupled 3.00000 0.75000 IN No No No 60 degrees
330-0180
N-07034 HOLDER RWMA Class 2 4RW Closed-Coupled 3.00000 0.87500 IN No No No 60 degrees
330-0190
N-07035 HOLDER RWMA Class 2 5RW Closed-Coupled 3.00000 0.87500 IN No No No 60 degrees
330-0220
N-08034 HOLDER RWMA Class 2 4RW Closed-Coupled 3.00000 1.00000 IN No No No 60 degrees
330-0230
N-08035 HOLDER RWMA Class 2 5RW Closed-Coupled 3.00000 1.00000 IN No No No 60 degrees
330-0280
N-10034 HOLDER RWMA Class 2 4RW Closed-Coupled 3.00000 1.25000 IN No No No 60 degrees
330-0290
N-10035 HOLDER RWMA Class 2 5RW Closed-Coupled 3.00000 1.25000 IN No No No 60 degrees
330-0360
N-12034 HOLDER RWMA Class 2 4RW Closed-Coupled 3.00000 1.50000 IN No No No 60 degrees
330-0370
N-12035 HOLDER RWMA Class 2 5RW Closed-Coupled 3.00000 1.50000 IN No No No 60 degrees
