E-12086-A HOLDER

E-12086-A HOLDER

Part #: 320-0385

Request 3D Model

Request 3D Model

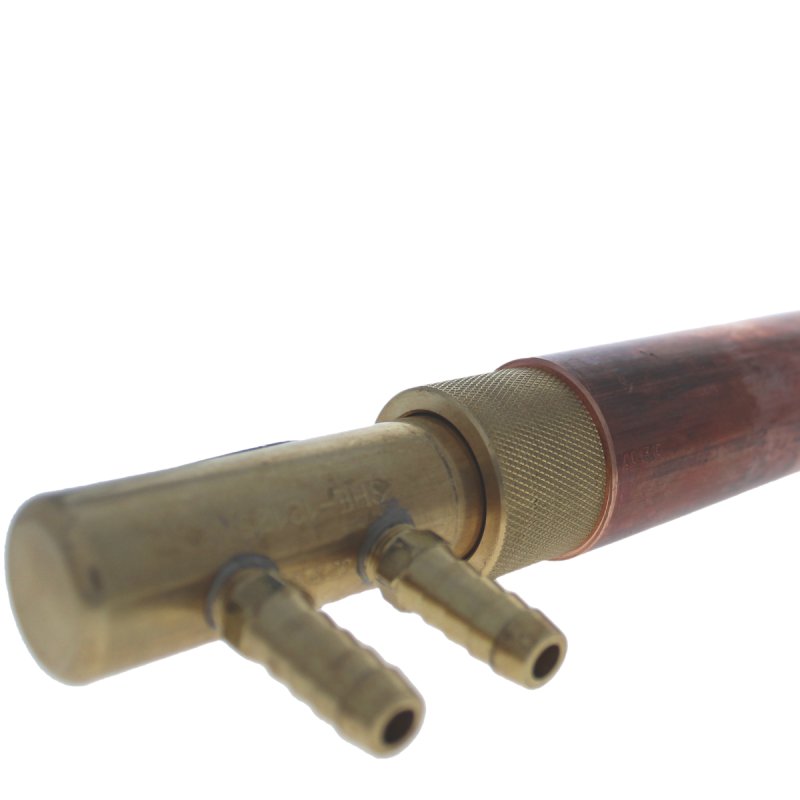

Straight holders or barrel holders have a simple design to minimize the maintenance costs for users. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life. Straight holders are designed for use with Rocker Arm and Pedestal Type welders.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 8.000 IN
  • The outside diameter is 1.500 IN
  • The part holds a subcomponent via a 6RW standard taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • Ejector Type Part
  • This holder includes the 190-3613 threaded electrode adapter

Specifications

RWMA Material Type RWMA Class 2
RMWA Taper 6RW
Holder Type Goldcrown Ejector
Barrel Length 8.00000
Barrel Dia. 1.50000
Unit of Measure IN
Ejector Type Yes
Adapter Included Yes
