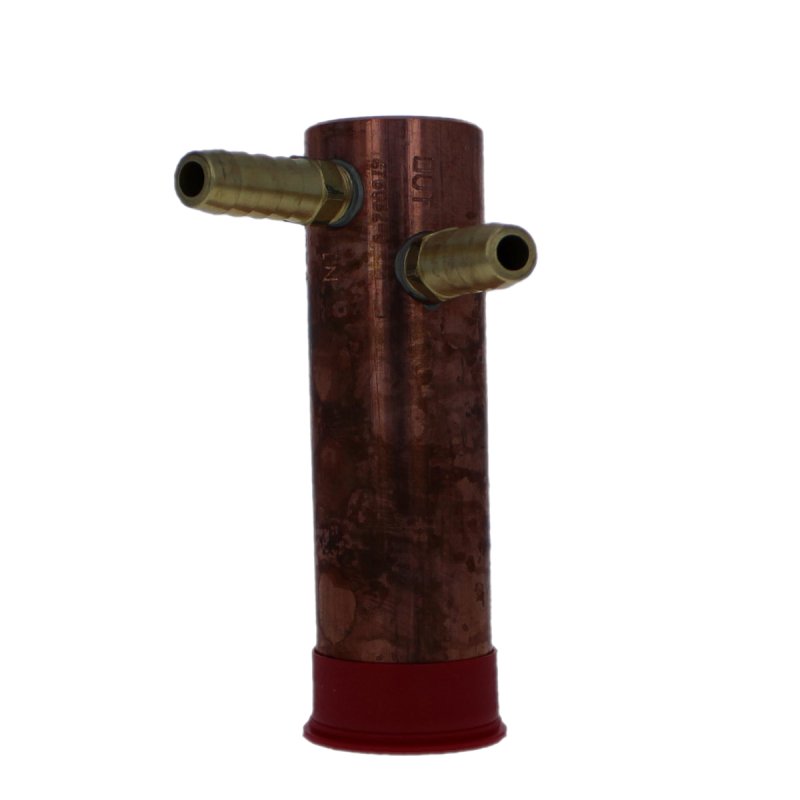

N-10034 HOLDER

N-10034 HOLDER

Part #: 330-0280

Request 3D Model

Request 3D Model


Straight holders or barrel holders have a simple design to minimize the maintenance costs for users. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life. Straight holders are designed for use with Rocker Arm and Pedestal Type welders.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 3.000 IN
  • The outside diameter is 1.250 IN
  • The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.

Specifications

RWMA Material Type RWMA Class 2
RMWA Taper 4RW
Holder Type Closed-Coupled
Barrel Length 3.00000
Barrel Dia. 1.25000
Unit of Measure IN
Angle Between Tubes (Closed Coupled) 60 degrees
